Diagnosing Cold Start Rattle: Ford EcoBoost 3.5L Cam Phaser Rattle

If you own a Ford F-150 or Expedition equipped with the 3.5L EcoBoost engine, you may have experienced a jarring, metallic rattling sound immediately after turning the key on a cold morning. This sound, which usually lasts for only a few seconds before disappearing, is not only annoying – it’s a warning sign of a significant mechanical failure.

Understanding The Root Cause Of Ford Cold Start Rattle

The notorious cold start rattle is primarily attributed to the variable cam timing (VCT) phasers. In the Gen 1 and Gen 2 3.5L EcoBoost engines, these components adjust camshaft timing to optimize performance and fuel efficiency.

Over time, the locking pin or its receptacle wears prematurely, gets damaged, or fails to engage/retain properly. When the vehicle sits overnight, oil drains out of the phasers. Upon startup, the lack of immediate oil pressure causes the internal components to knock against each other until hydraulic pressure is restored. While the Gen 2 engines (2017-20) are more commonly affected by this, the Gen 1 (2011-16) engines can also develop a cam phaser rattle.

Why Factory Units Fail

The original factory units were prone to premature wear because the design simply wasn’t robust enough. Common symptoms of this defect include:

• A loud clacking or rattling noise for 2–5 seconds at startup.
• Illumination of the check engine light (CEL).
• Diagnostic trouble codes (DTCs) such as P0016 or P0017, indicating camshaft position correlation errors.
• Rough idling or decreased engine performance once the vehicle reaches operating temperature.

The Powertrain Products Solution

At Powertrain Products, we recognize that installing a standard remanufactured engine with the same faulty components only resets the clock on an inevitable failure.

To address this, our remanufactured 3.5L EcoBoost units are updated with the latest generation of Ford-engineered parts. We use the redesigned service kit phasers that Ford developed to address flaws in the original Gen 1 and Gen 2 designs. The new locking pin design is much sturdier, and there are no reports of widespread issues with the new phasers.

“Our remanufacturing process focuses on correcting factory defects rather than simply replacing worn parts with identical, flawed components.”

Powertrain Products

Engineering Upgrades And Reliability

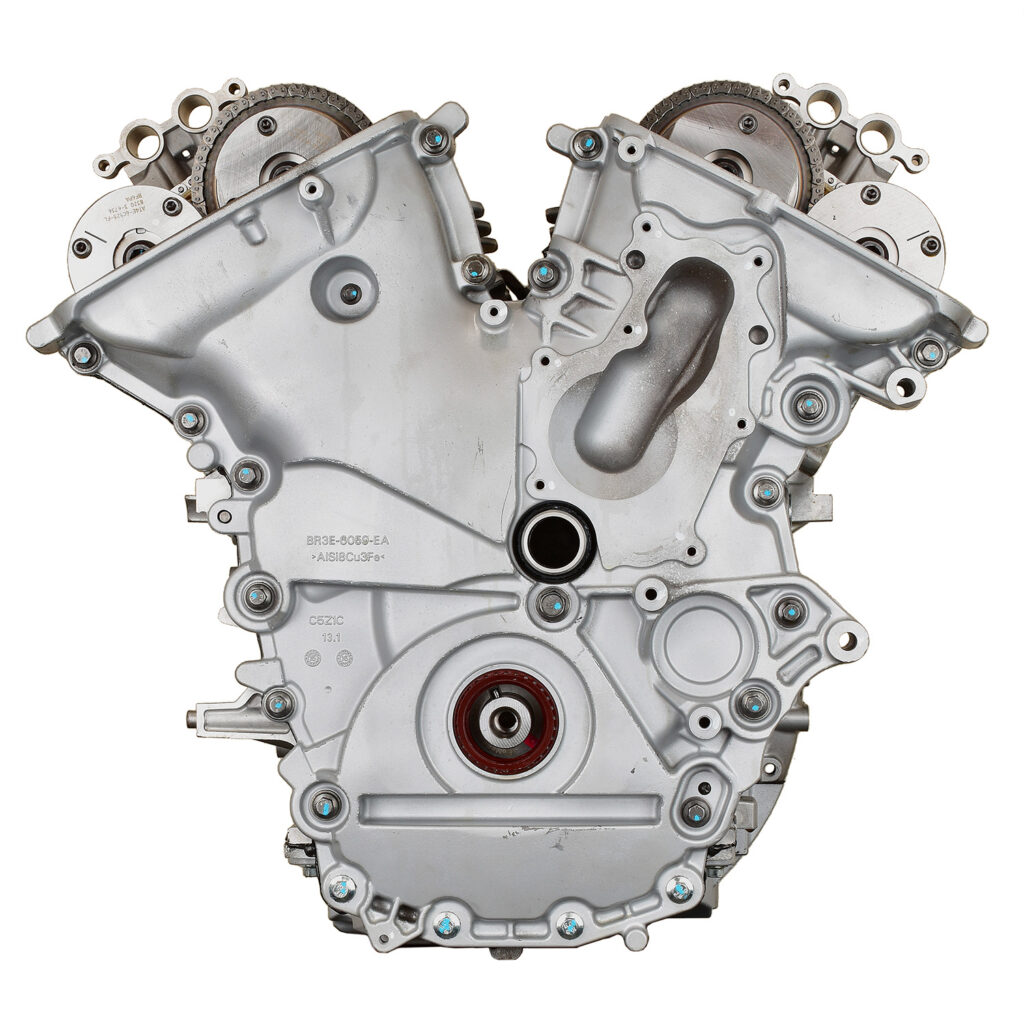

When you choose a PPI remanufactured engine, you receive a power plant that has been improved for longevity. Our process ensures that the most vulnerable areas of the EcoBoost architecture are reinforced. Key updates in our remanufactured units include:

• Updated Cam Phasers: We use the newest revision of the VCT phasers featuring hardened internal locking pins to prevent the common rattle.
• Improved Timing Components: New timing chains, tensioners, and guides are installed to ensure precise synchronization.
• Comprehensive Testing: Every unit undergoes rigorous simulation testing to ensure oil pressure and VCT function meet or exceed OEM specifications.

By integrating updated Ford parts we ensure the 3.5L EcoBoost we sell delivers the reliability you expect from a heavy-duty workhorse.

Experience The Powertrain Products Difference

By addressing these inherent design flaws during the remanufacturing, you get a 3.5L EcoBoost engine that is superior to the one that originally rolled off the assembly line. Every Powertrain Products engine is remanufactured to be better than OEM:

• We Offer An Unbeatable Warranty Up To Seven Years and One Million Miles
• Our Process Includes Newly Machined Parts For Superior Performance
• We Rectify Known Faults to Make Your Engine Better Than New

Get in touch with our team if you have any questions about finding the right Ford EcoBoost 3.5L engine to suit your needs. We’re also the nation’s leading supplier of transmissions, differentials, and transfer cases – order online today!
