Diagnosing The Triton Tick: Rocker Arm Failure

The Ford Triton engine is famous for its power, but it has become equally notorious for a specific rhythmic tapping noise known as the “Triton Tick.” This sound is often the first warning sign of internal issues that can lead to engine failure if ignored.

Let’s take some time to explore the mechanical roots of this sound, which vehicles are most at risk, and how you can protect your investment – or fix the problem for good with a high-quality remanufactured solution.

What Causes the Triton Tick?

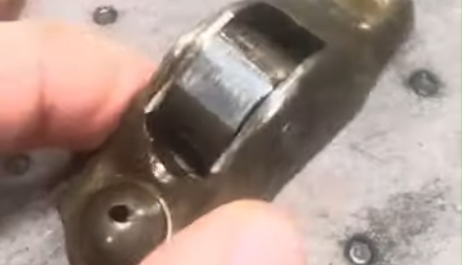

The Triton Tick is a symptom of a mechanical breakdown within the valvetrain. The primary cause is typically a failure of the rocker arms, also known as cam followers. The bearings within the rocker arms wear down or seize, causing the arm to develop play and strike the camshaft unevenly, eventually sending metal debris throughout your entire engine.

While rocker arm failure is the main cause of that dreaded ticking noise, several other factors can also contribute to this issue:

• Oil Starvation: The 3-valve design has narrow oil passages; if these become clogged, the top end of the engine doesn’t receive enough lubrication, leading to rapid wear.
• Cam Phaser Issues: Wear in the variable camshaft timing (VCT) system can create a similar knocking or ticking sound, often exacerbated by low oil pressure.
• Lifter Collapse: If a hydraulic lifter fails to maintain pressure, it creates a gap in the valvetrain, resulting in a metallic tick.

What Engines and Ford Models Develop the Triton Tick?

This issue is most prevalent in the 5.4-liter Ford Triton 3-valve engine. This powerplant was used in many popular Fords over the years. That means there are millions of vehicles on the road today susceptible to these valvetrain complications. You can check to see if your model is affected by using our handy free VIN decoder. Several common models affected include:

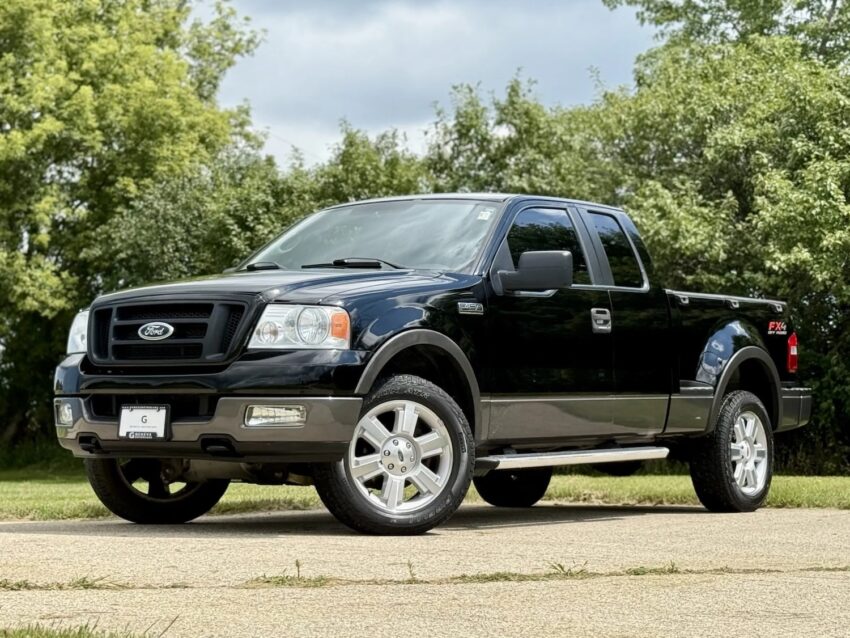

• Ford F-150: Predominantly models produced between 2004 and 2010.

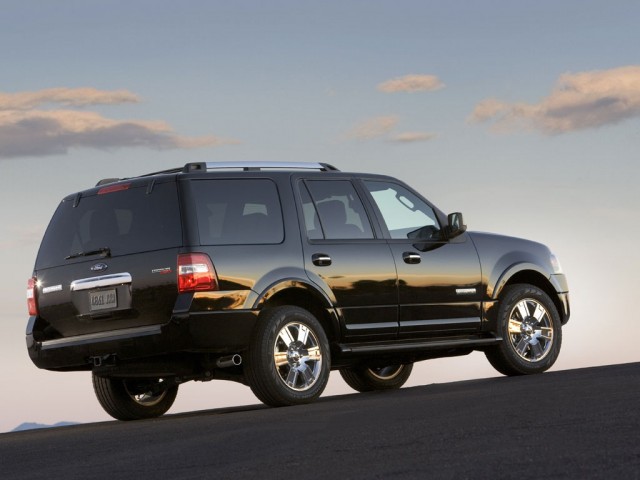

• Ford Expedition: The primary V8 option for many years during the mid-2000s.

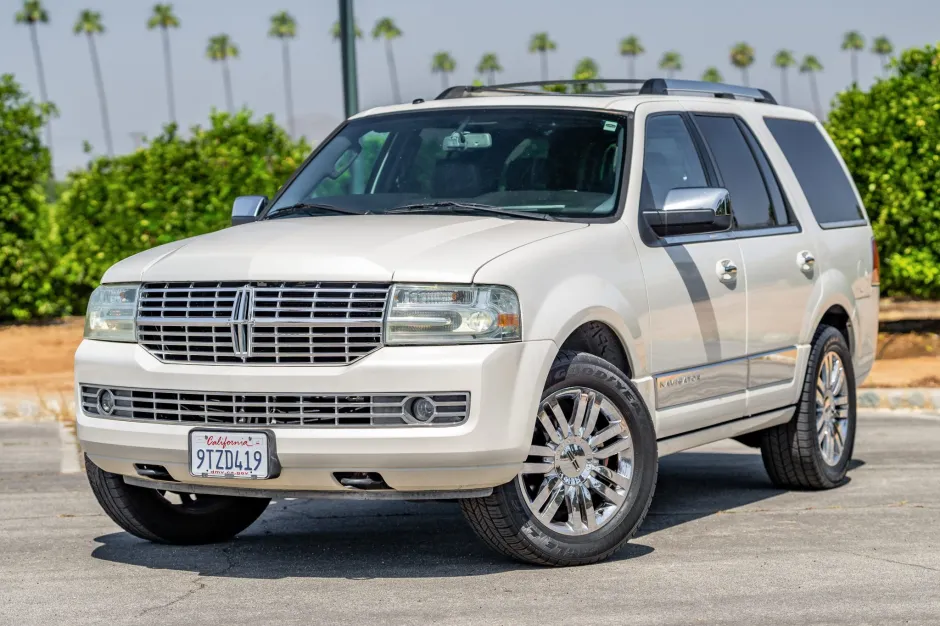

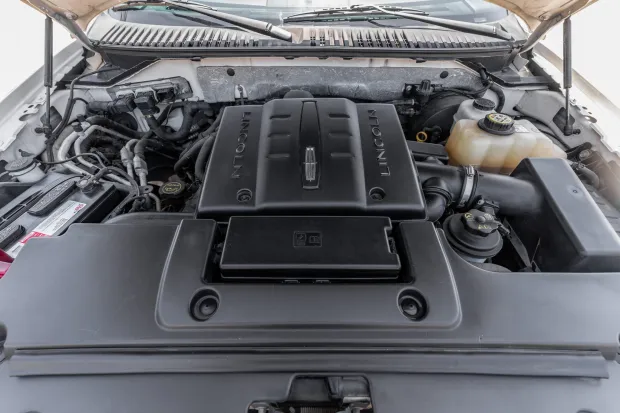

• Lincoln Navigator: These luxury SUVs shared the same 5.4L 3-valve architecture as Fords.
• Ford F-Series Super Duty: Including F-250 and F-350 trucks using the Triton V8.

What Can You Do to Prevent Triton Tick?

Preventing the Triton Tick starts with meticulous maintenance. Because the 3-valve engine is so sensitive to oil pressure and flow, you cannot afford to skip oil service intervals.

• Frequent Oil Changes: Use high-quality synthetic oil and change it every 3,000 to 5,000 miles to prevent sludge buildup.
• High-Quality Filters: Always use a Motorcraft or equivalent high-flow oil filter with a silicone anti-drainback valve.
• Monitor Engine Temperature: Overheating can thin the oil and accelerate the wear on those delicate rocker arm bearings.
• Listen Early: Addressing a small tick by replacing rocker arms immediately can sometimes save the camshaft and the rest of the engine.

Maintenance is the best defense against the inherent design flaws of the 5.4L 3-valve valvetrain.

What If You Already Have the Triton Tick?

If your engine is already ticking loudly, the damage to the camshafts and the cylinder heads may already have taken place. In many cases, the only option is replacement. At Powertrain Products we offer long-lasting remanufactured Triton engines with factory flaws corrected – you’re getting a better-than-original design. We rectify the design flaws by focusing on the issues that caused them:

• High-Volume Oil Pump: We replace the weak factory pump with a heavy-duty Melling pump to ensure the top of the engine never runs dry.
• Updated Rocker Arms: Redesigned cam followers with better bearings and larger oil holes prevent the tick and seizing.
• Latest Cam Phasers: We install the newest Ford-revised phasers, which have stronger internal locking pins to prevent knocking.
• Precision Machining: CNC-machining of the camshaft journals allows tighter tolerances, preventing oil from leaking out of the sides and keeping pressure high.
• Advanced Pistons: Graphite-coated pistons reduce friction and eliminate piston slap noise during cold starts.

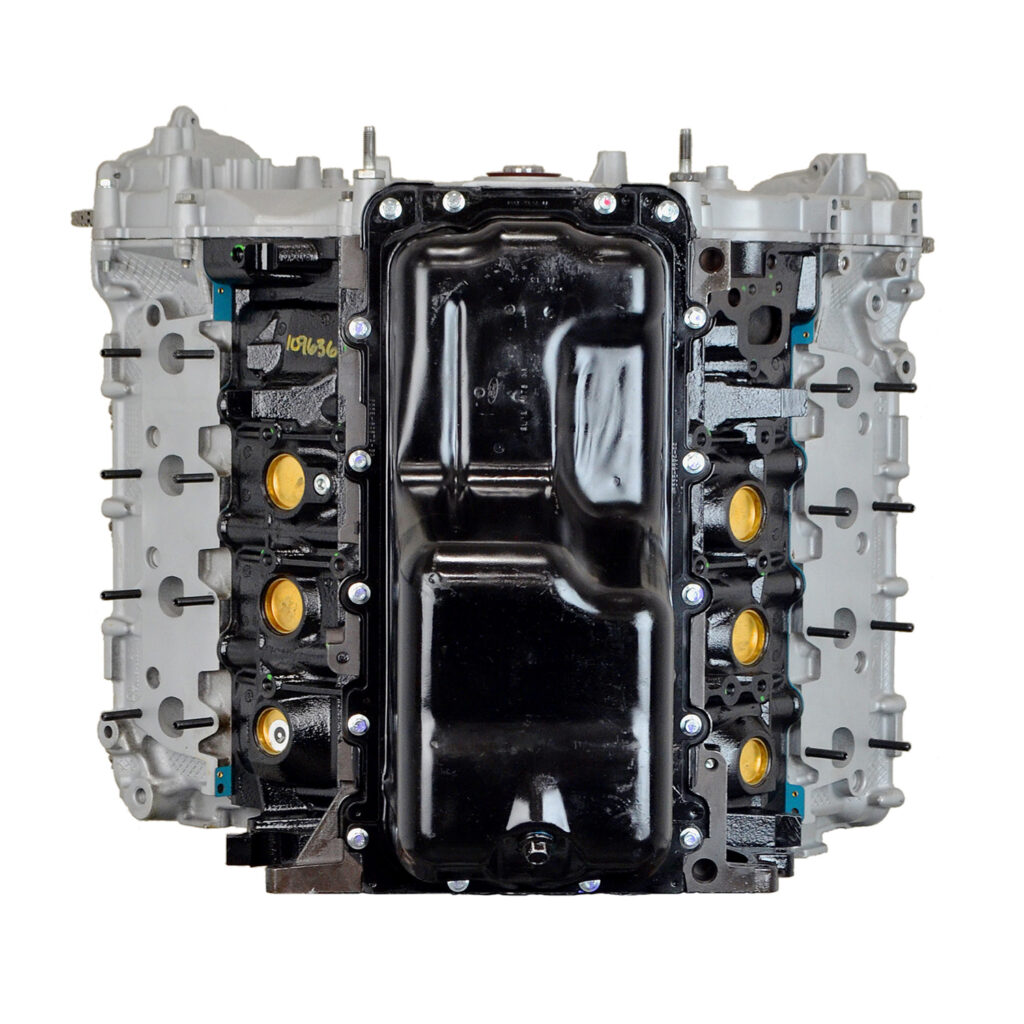

Remanufactured Triton Engines from Powertrain Products

The Ford 5.4L Triton 3-valve is a capable engine, but the Triton Tick caused by rocker arm failure is a serious threat to its longevity. By understanding the causes – primarily oil starvation and cam follower wear – and adhering to strict lubrication schedules, you can greatly extend your engine’s life.

However, if the damage is done, a quality remanufactured engine from Powertrain Products will ensure your Ford stays on the road for many more years. We don’t just repair the affected parts; we completely remanufacture the engine and correct the factory flaws that caused the issue in the first place:

• Correcting Design Flaws: Not just rebuilt engines; we re-engineer them to fix the original Ford factory defects.
• Updated Components: Our engines feature updated high-flow oil pumps and redesigned cam followers to ensure the tick never returns.
• Rigorous Testing: Every engine is SIM tested to ensure oil pressure and valvetrain timing are perfect before it ships.
• Industry-Leading Warranty: Choose an extended Powertrain Products warranty for a comprehensive warranty that offers peace of mind that most rivals can’t match.

If you are ready to silence the tick forever, then get in touch with our engine experts today. We pride ourselves on being the leading supplier of rebuilt engines in the nation, offering up to a 7 year million mile warranty that can’t be beat!
