Description

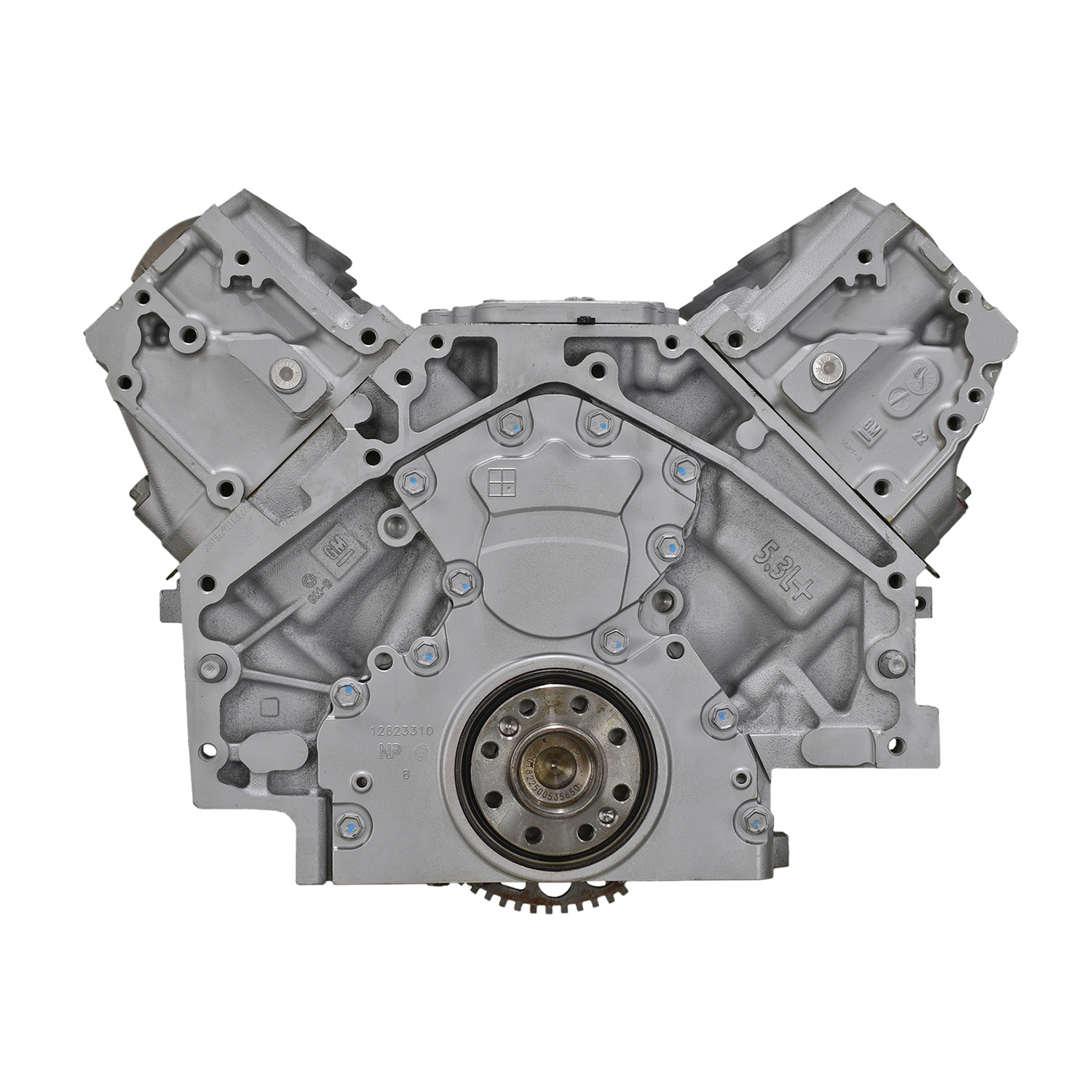

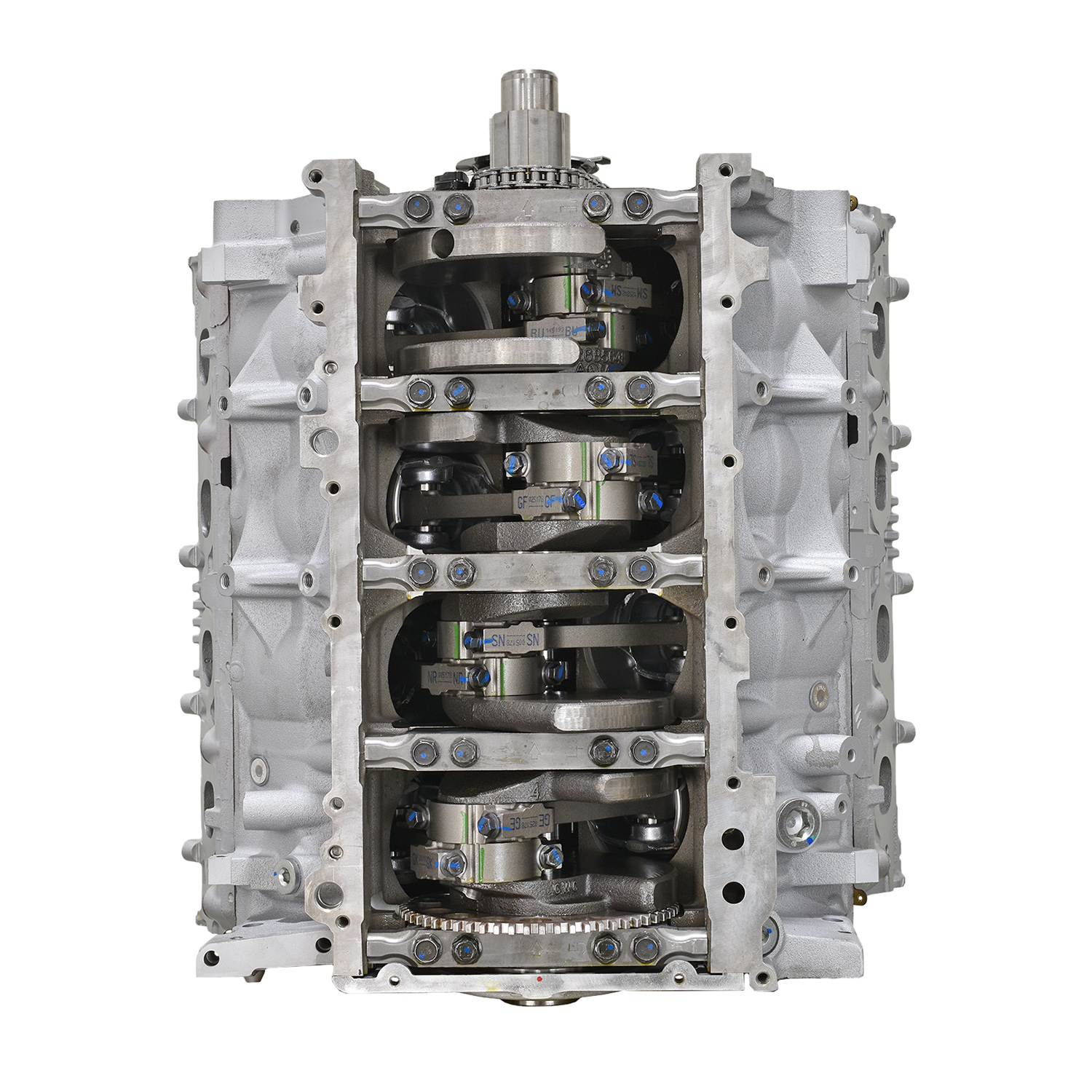

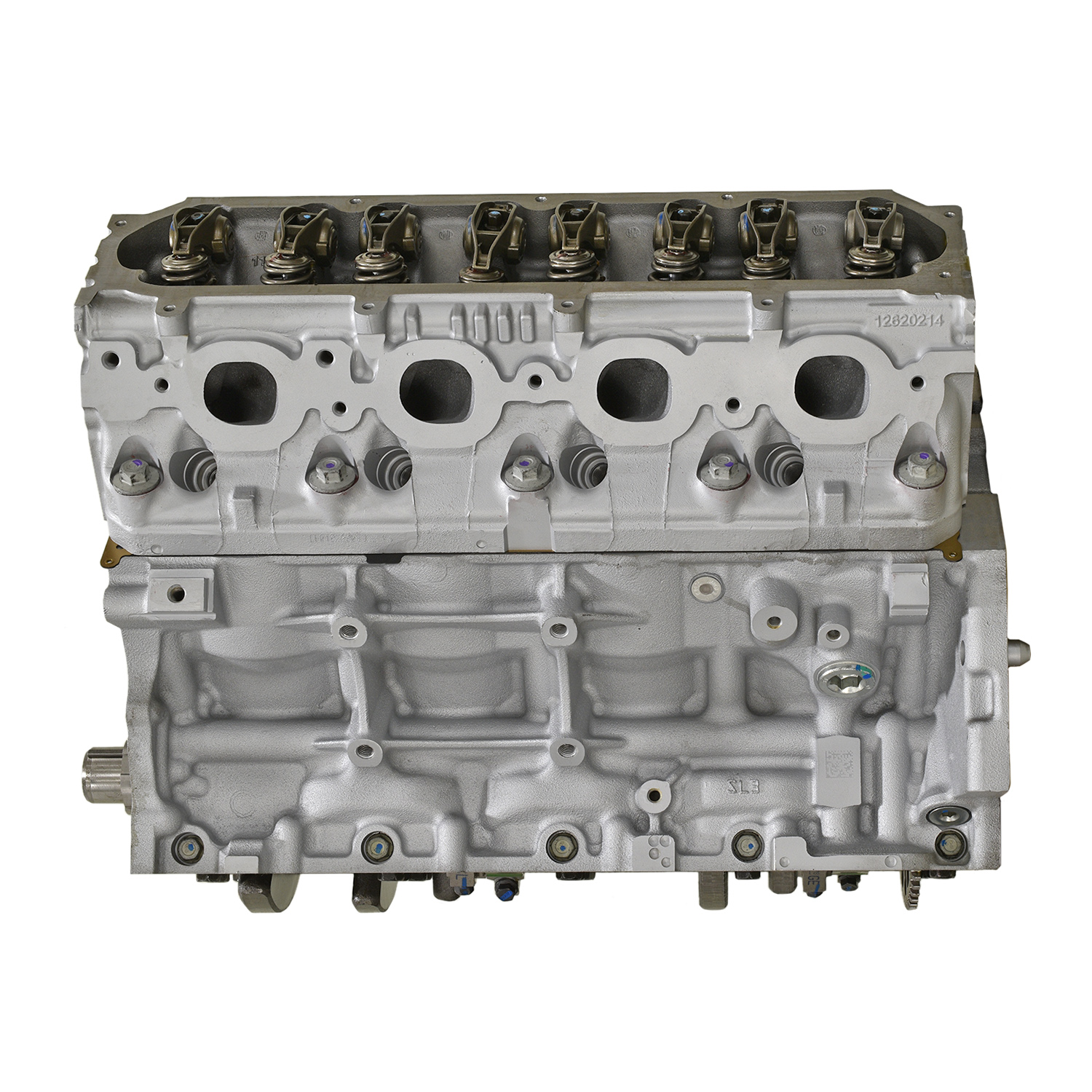

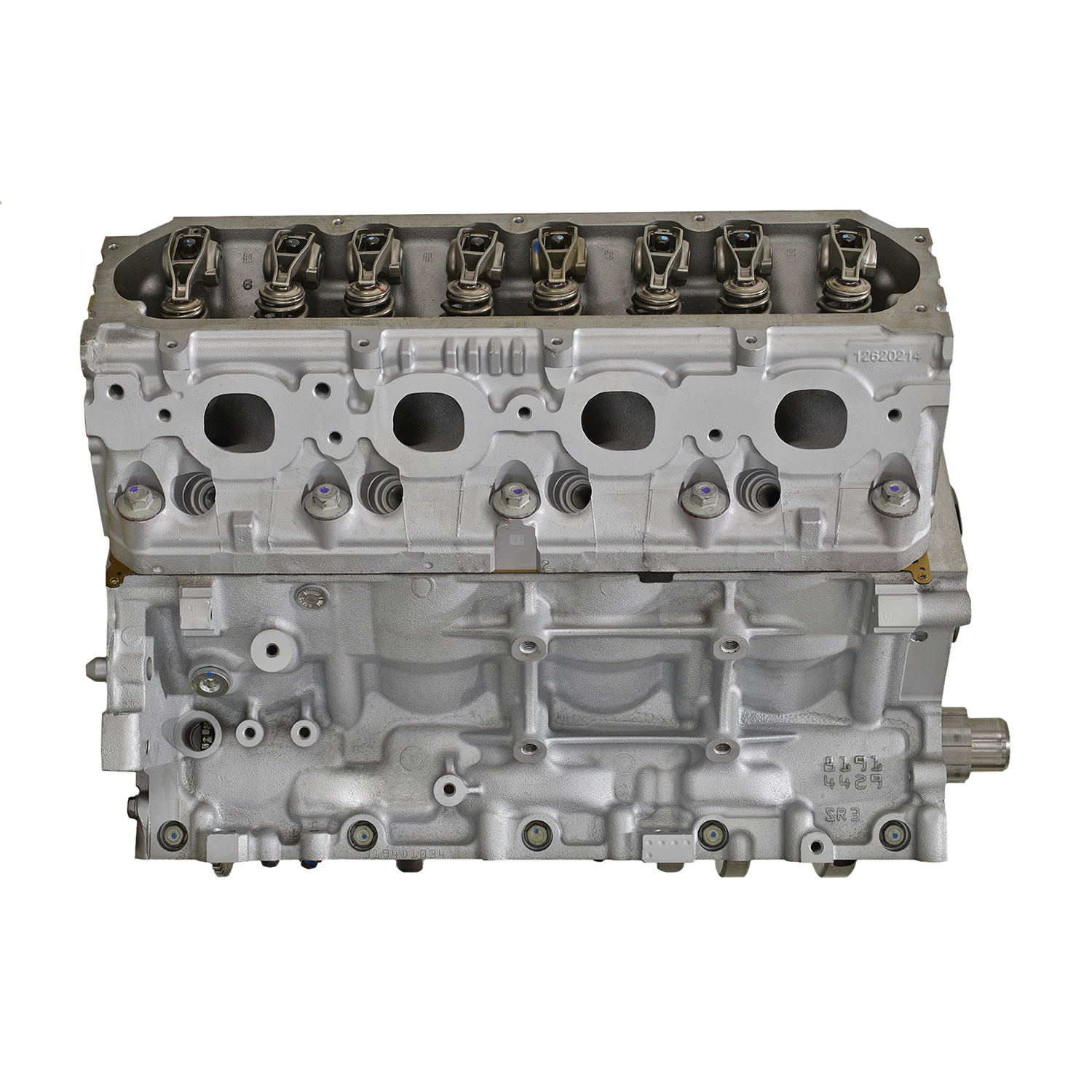

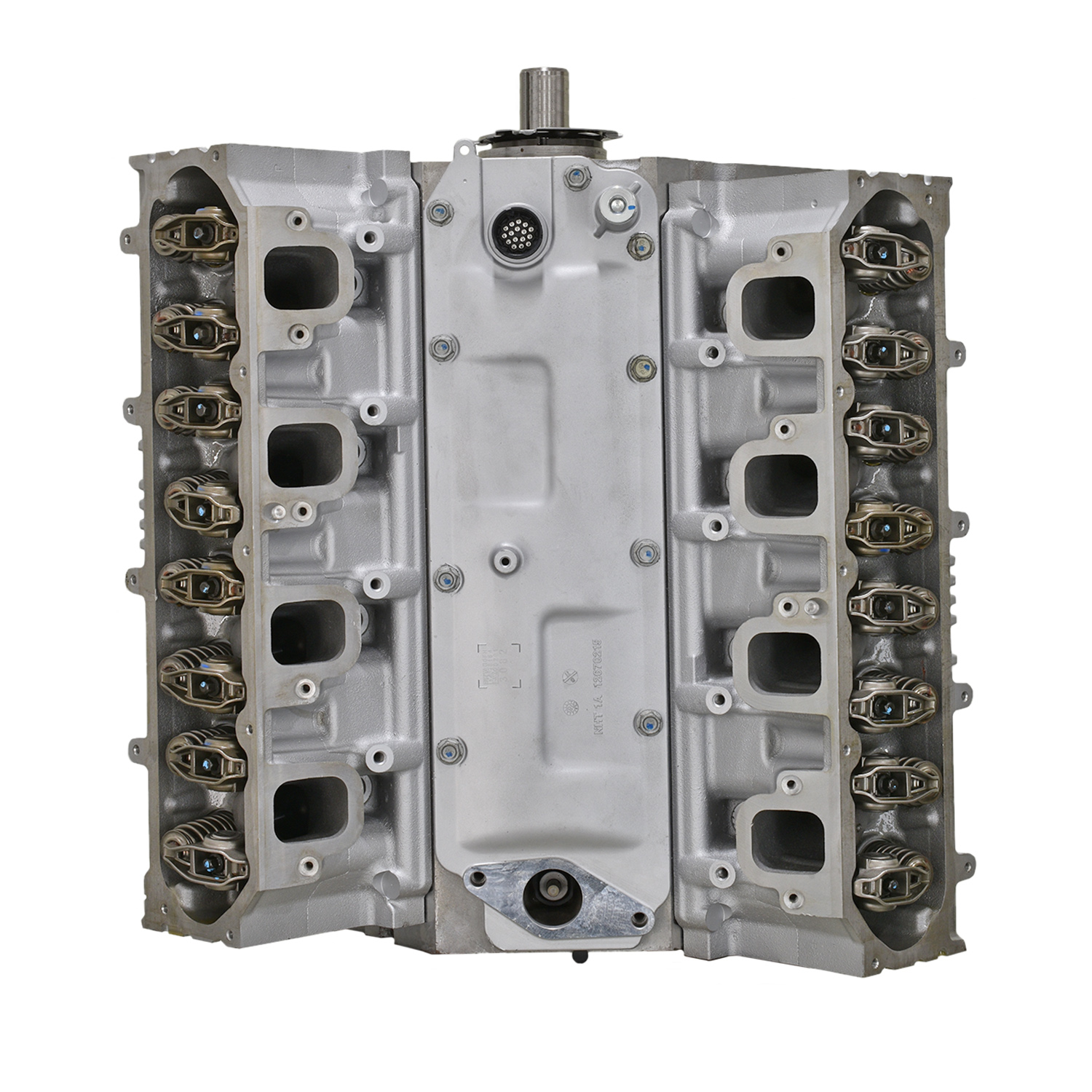

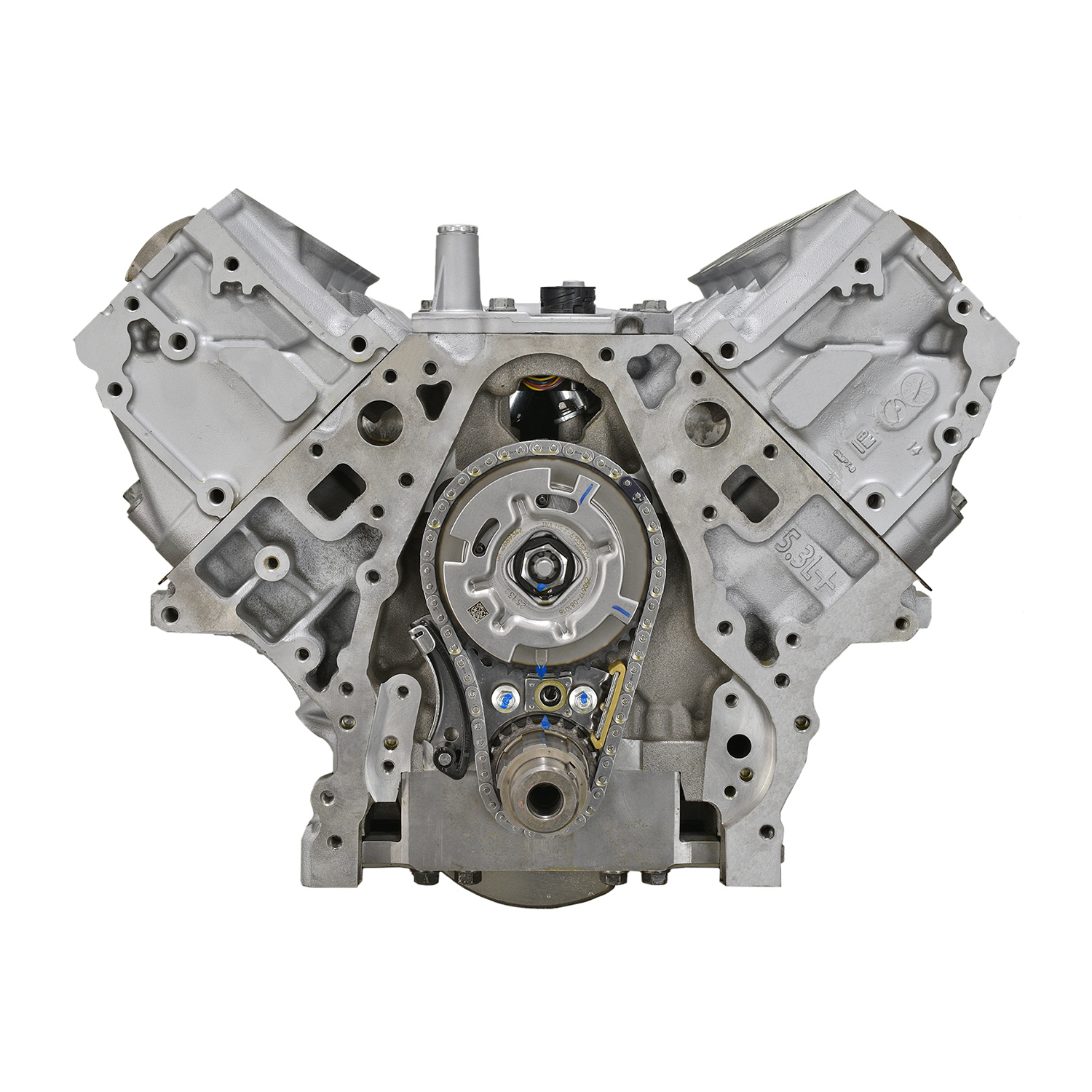

2019-2024 Chevy/ GMC 5.3 Vin D Only L84 Engine

These Engines come with two different injector port sizes in the heads and we must know this in order to send the proper one when ordering.

Please see the photos below to determine which one you need

Looking at the cylinder head on the side above the exhaust manifold and below the valve cover you will see 5 notches casted into the head

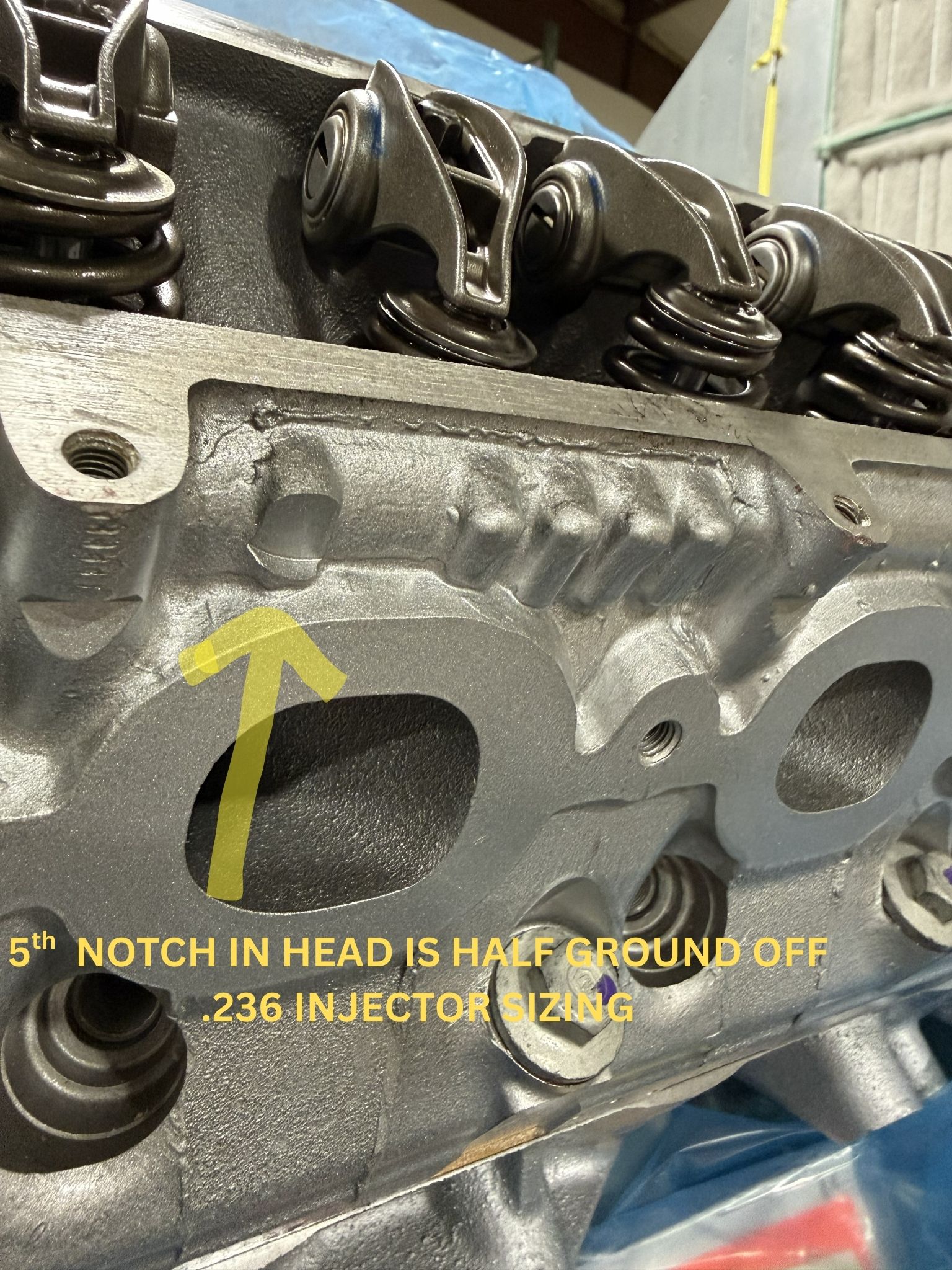

5 notch head with the leading notch ground as shown would be the .236 injector sizing

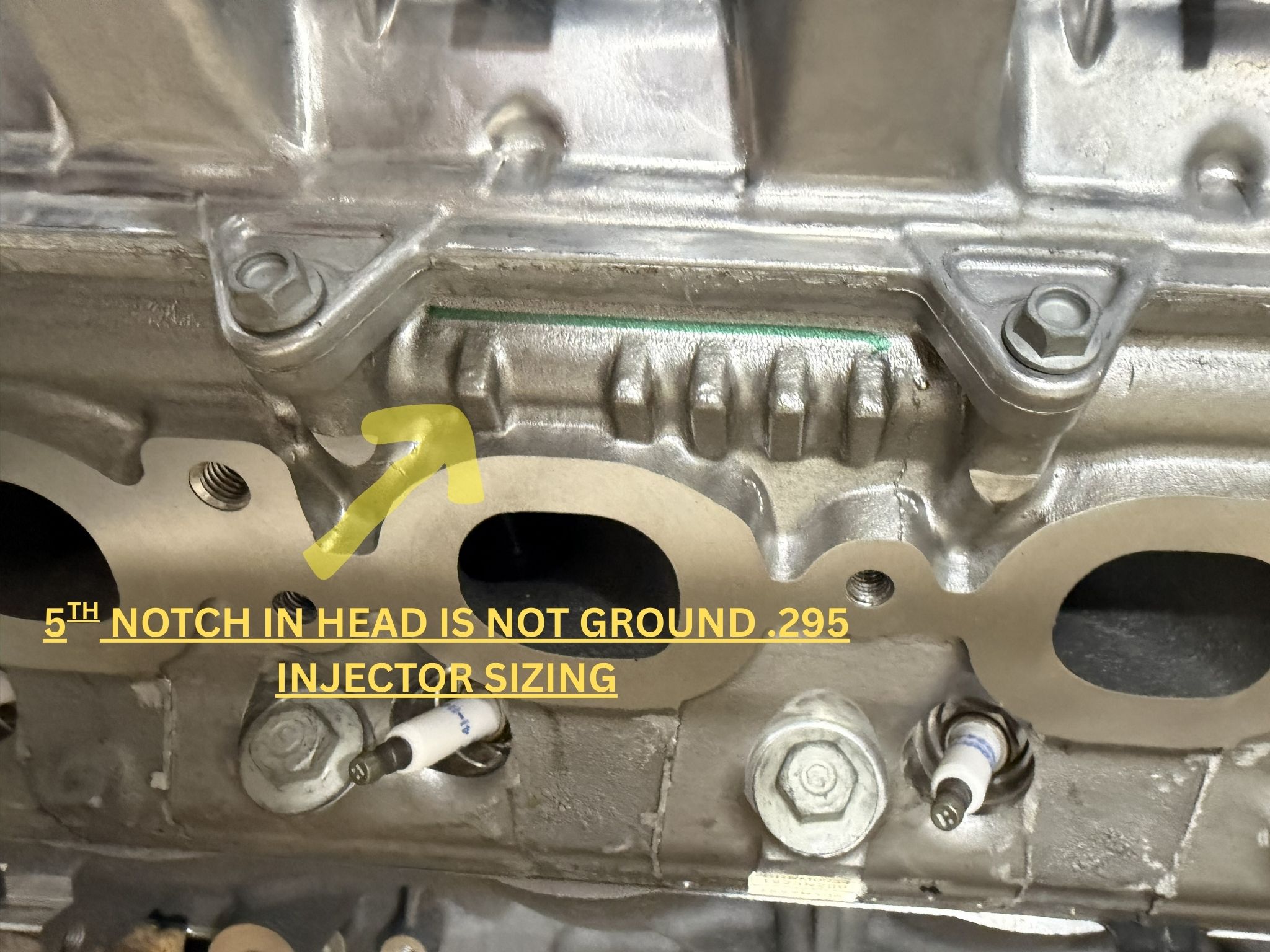

5 notch with leading notch not ground off as shown in photos would be .295 injector sizing

This fits the following vehicles:

• 2019-2024 Chevy Silverado 1500 5.3
• 2021-2024 Chevy Suburban 5.3
• 2022 Chevy Silverado 1500 LTD 5.3
• 2021-2024 Chevy Tahoe 5.3
• 2019-2024 GMC Sierra 1500 5.3
• 2022 GMC Sierra 1500 LTD 5.3
• 2021-2024 GMC Yukon 5.3
• 2021-2024 GMC Yukon 5.3

Engine fitment can be verified with the notes and ‘Vehicle Fitment’ tab above, or with the casting numbers under ‘Additional Information’ (if applicable), or by calling toll-free 888-842-0023.

• Every engine we sell is fully remanufactured to meet or exceed OEM specifications:
• Deep Clean – To start the remanufacturing process, every engine is fully disassembled and hot tanked (cast iron) or thermally cleaned (aluminum)
• Inspection – Magnaflux testing uses magnetic particles to inspect metal, checking for microscopic cracks and fissures that will cause long-term failure. All parts are visually inspected as well.
• Machining and New Parts – Deck surfaces are CNC machined and new parts are added. New parts inlcude bearings, pistons, rings, lifters, oil pump, gaskets, Viton™ valve seals, freeze plugs, galley plugs and either a new timing chain (with new tensioners) or a new timing belt (with new tensioner). If an engine has a timing-driven water pump, a new pump is installed.
• SIM Testing – Each engine is SIM tested after reassembly, with the cooling and oil systems being fully pressurized and the crank being spun at high RPM to verify compression and build quality.
• Because of our rigorous remanufacturing process, we can offer the industry’s best warranties. Each engine comes with up to 7 years and 1 million miles of warranty, which can be upgraded to include Pure Care™ no-fault protection. No other engine manufacturer comes close.
