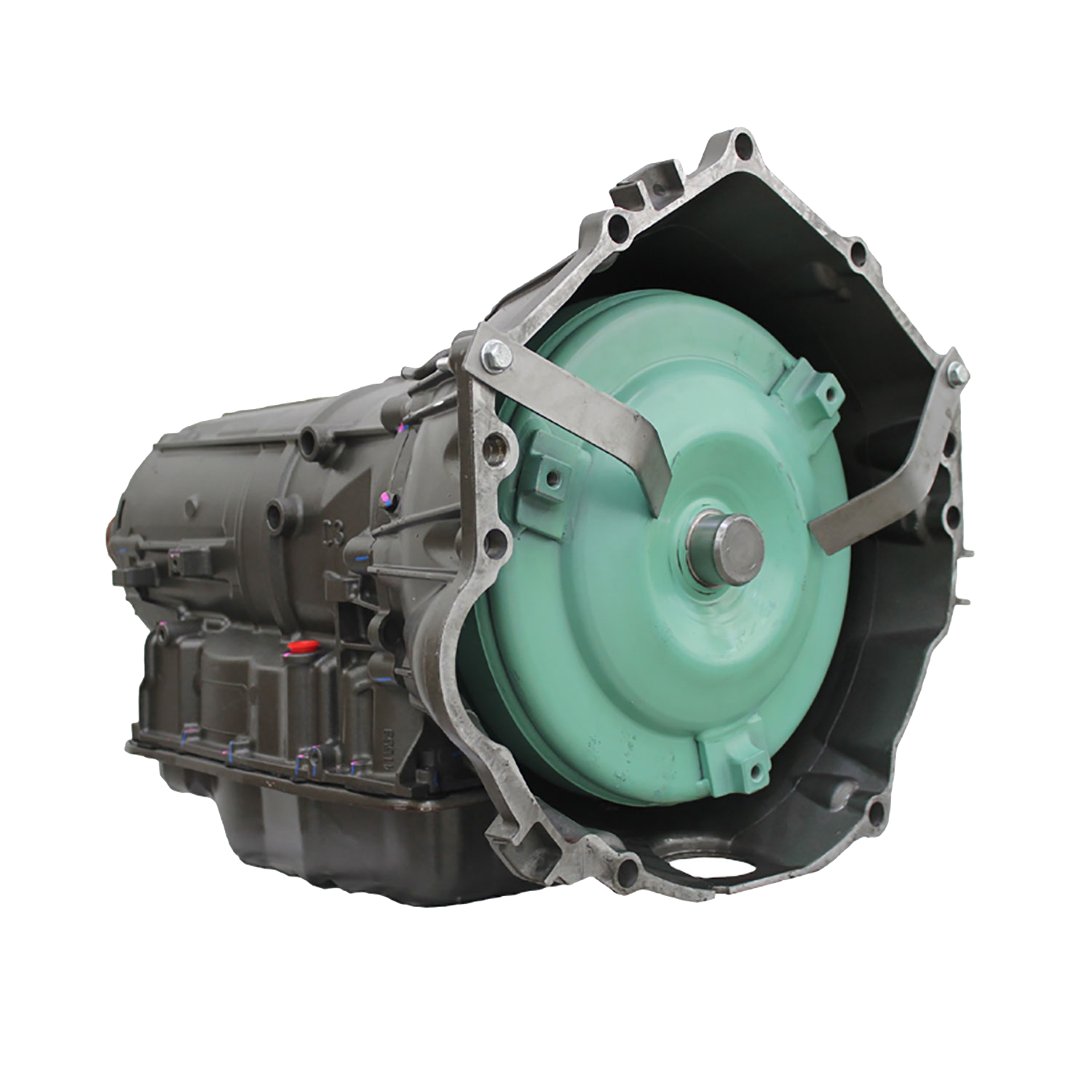

6L80E Race Spec Pro Performance Transmission
$8,999.00
Built to handle serious horsepower and torque, our LS performance transmissions deliver smooth, reliable shifts and maximum durability. From upgraded stock units to fully race-prepped options, we’ve got the strength and performance your build demands.
Questions? Call Toll-Free: 888-842-0023
Description
6L80e Street Spec Performance Transmission Capable or 900 HP
We start with a fresh never rebuilt 4L80E core with zero case damage for all performance builds. The units are torn down and put through our rigorous inspection process to confirm the quality of the core meets the stringent guideline you would expect from a performance transmission. Every unit receives a complete rebuild regardless of the condition of internal parts.
Once fully assembled the unit is dyno tested using our proprietary programming on one of our Axiline dyno machines to confirm proper operation prior to packaging and shipping to you. This unit is perfect to pair with one of our 370 or 408 Boost Ready Engine as well as our 408 Race applications.
Upgraded Parts:
- Blue Race Clutches
- High Capacity 3-5-R Apply Ring
- Kolene Steels
- Pro-Valve Body
- Billet Pump Rotor
- New Low Sprag
- High Capacity 4-5-6 Clutch Kit
- 1-2-3-4 Billet Piston
This is based on the 13-21 GM LS applications available in both 2wd or 4×4.
Additional information
| Weight | 385 lbs |
|---|---|
| Dimensions | 41 × 26 × 25 in |
| Transmission Family | 6L80E |
| Transmission Speeds | 6-Speed |
| Cooler Included | No |
| Cooler Replacement Required | Yes |
| Radiator Included | No |
| Radiator Replacement Required | Yes |
| Transmission Fluid Type | PZL-LVMULTI |
| Lockup | Yes |
| Transmission Fluid (Quarts) | 13 |
| Tail Housing | With |
| Pan Bolts | 17 |
| Bell Housing | With Bolt Hole at 12 o'clock Position |
| Product Type | Transmissions |
| Cooler Lines | 9 Inch Apart – Central Lube System |
| Neutral Safety Switch | Neutral Safety Switch: With Bosses on Driver Side |
| Output Type | Slip on Yoke |
| Shift Type | 1-3/4 Inch Manual Shift Shaft Size |
