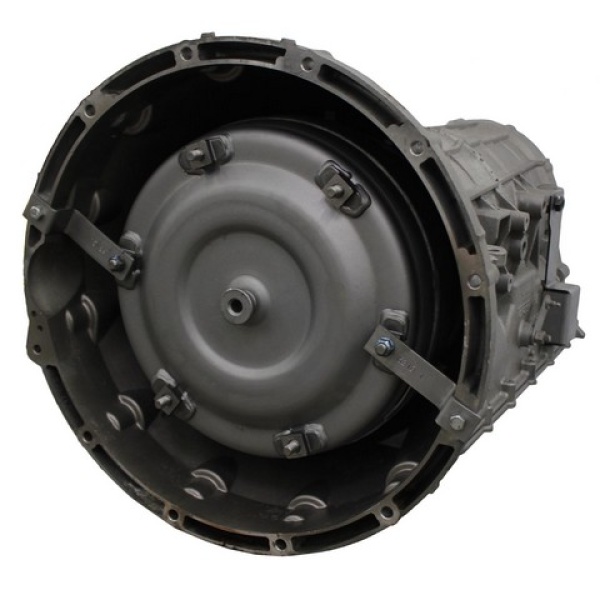

The Ford 6R140 Transmission: All You Need To Know

The Ford 6R140 is a tough six-speed automatic transmission that has proven itself in harsh working conditions for years. While it is a reliable unit overall, even the best transmission will eventually need attention after many hard miles and years of use. We cover everything you need to know about the 6R140 right here, including failure signs, common issues, and repair costs.

What Vehicles Are Compatible With The Ford 6R140?

The 6R140 was introduced in 2011 as a heavy-duty transmission for use in the Super Duty F250, F350, F450, and F550 range of Ford trucks. It was the replacement for the popular 5R110 and was in common use until a few years ago when the 10-speed 10R140 replaced it.

Does The 6R140 Have Common Problems I Should Worry About?

There’s no denying that the 6R140 is a seriously heavy-duty piece of gear. It’s made from a single-piece housing, which lowers overall weight and results in quieter operation and has an advanced gear set designed for serious use. However, there are some known issues that you should be aware of:

• The torque converter clutch boost valve can wear out prematurely leading to torque converter failure. This can happen at any point but is particularly common in heavy-duty uses such as towing.
• Fine dirt and debris in the system can damage the valve body. This can occur after high mileage or neglected maintenance.
• Overheating can occur due to contaminated or dirty transmission fluid, constant heavy-duty use, and a worn-out pump.

Symptoms Of A Failing Transmission

If you experience stalling, hesitation, jerkiness between shifts, or erratic torque converter activation, your 6R140 transmission may require repair or replacement.

At Powertrain Products, we don’t just remanufacture your 6R140 transmission. We address any known issues with unit-specific upgrades, including custom-specified bushings, updated TCC valve regulators, and a new pump.

Every unit also gets a completely new valve body, solenoids, and torque converter, addressing several factory flaws.

How Much Does A Ford 6R140 Transmission Cost?

A remanufactured Ford 6R140 transmission from Powertrain Products typically costs under six thousand dollars once the core charge waiver has been factored in. This price also includes a standard 3-year warranty. Have a look at our full range of 6R140 transmissions here.

Can I Replace A Ford 6R140 Transmission Myself?

Replacing the Ford 6R140 transmission is a complex job that demands specialized tools and a thorough knowledge of the process. The transmission is large and heavy, so unless you’re an experienced mechanic, it’s best to leave the work to a professional.

If you’re confident in your mechanical abilities, make sure to follow detailed service manuals and carefully observe all safety precautions from start to finish. Some tools you will need are a vehicle lift and heavy-duty transmission lift, torque wrench, breaker bar, and pry bar. Check to see if any specialized transmission removal tools are needed for your truck.

Should I Buy A New, Remanufactured, Or Used Ford 6R140 Transmission?

New is the most expensive option, yet surprisingly, it won’t resolve known issues. Brand-new transmissions from the manufacturer may come with a warranty, but they often lack the latest updates and fixes for existing design flaws. In time, you may experience the same issues.

Used is the least expensive choice, but it comes with significant risk. There’s no way to verify the internal condition of the used unit, and most don’t include a warranty. This can leave you vulnerable to costly problems down the road.

Remanufactured offers a great balance of value and reliability. Remanufactured transmissions from trusted names like Powertrain Products are rebuilt to standards that exceed OEM quality, include updated components to fix common issues and come backed by an industry-leading warranty.

Where Should I Buy A Ford 6R140 Transmission?

Plenty of suppliers offer remanufactured Ford 6R140 transmissions, but not all remanufactured units are created equal. We go beyond basic remanufacturing; we follow a rigorous, precise process that corrects known factory flaws, making our transmissions better than new.

We back our work with an available industry-leading Million Mile Warranty, valid for up to 7 years. That confidence comes from our meticulous remanufacturing process:

• Each transmission is completely disassembled, inspected, and triple-cleaned. During this phase, we also chase all threads and replace every bushing with brand-new parts.
• Our top technicians rebuild and inspect each valve body, then test it using our C.A.R.S. system, which simulates real-world driving conditions to ensure consistent performance and reliability.
• During reassembly, every unit receives all-new O-rings, gaskets, and seals. Finally, each transmission is subjected to intensive spin and load testing on our custom dyno machines to guarantee it’s ready for the road.

We also include custom 6R140 transmission specific upgrades:

• Custom Spec Bushings
• TCC Valve Regulator
• New Pump (To prevent slippage and delayed engagement)

Will A Replacement 6R140 Transmission Come With A Warranty?

Most definitely. Every one of our remanufactured transmissions comes standard with a 3-year warranty (If you’re using this transmission for a 1-ton and up application, our 18 month, 50k mile Commercial Warranty will be applied to your purchase instead.) This can be upgraded to a 5 or 7-year extended warranty, and you can further protect your investment with our Pure Care no-fault coverage.

Keep in mind that our remanufactured transmissions are not intended for use on trucks with modified emissions systems, deleted emissions systems, or tuned vehicles. We do offer upgraded units for that purpose (contact us for more info) however, the warranty that comes with our stock units will be voided if used in this manner.

What Are The Maintenance Intervals For The Ford 6R140 Transmission?

The 6R140 has a manufacturer-recommended transmission fluid change interval every 150,000 miles. This is thanks to a dual-media transmission fluid filter allowing finer dirt filtration. However, other non-serviceable components may also have worn out by this point, which can cause faster fluid degradation.

Some transmission specialists recommend checking the condition of the fluid every 30,000-40,000 miles, especially if the truck is often used in heavy-duty applications.

How Well Does The 6R140 Transmission Handle Towing Heavy Loads?

The 6R140 was designed to tow heavy loads and haul heavy cargo from the outset. Thanks to a strong Ravigneaux planetary gearset, it can use the engine’s full torque at launch. It comes with a tow/haul mode that allows the electronics to adjust shift patterns during towing.

A PPI remanufactured 6R140 transmission further improves on this impressive capability with new and upgraded components that address factory issues and allow your 6R140 to perform better than new.

Useful Online Transmission Resources from Powertrain Products

Shop Powertrain Products For Remanufactured Ford 6R140 Transmissions

We stock a complete range of fully remanufactured Ford 6R140 transmissions. We also have a vast selection of transmissions for many other makes of vehicles. Always make sure to use our VIN decoder and check your vehicle’s Transmission Tag Number to order the correct part the first time. Every Powertrain Products transmission Is remanufactured to better than OEM levels:

• 3-Year Standard Warranty Upgradeable To 7 Years And One Million Miles
• New And Fully Remanufactured High-Quality Parts Used
• Known Faults Are Rectified

We’re also the nation’s leading supplier of engines, differentials, and transfer cases. Reach out to us online, or call us at 888-842-0023 for help with your transmission needs.
